Specifications
Technical data

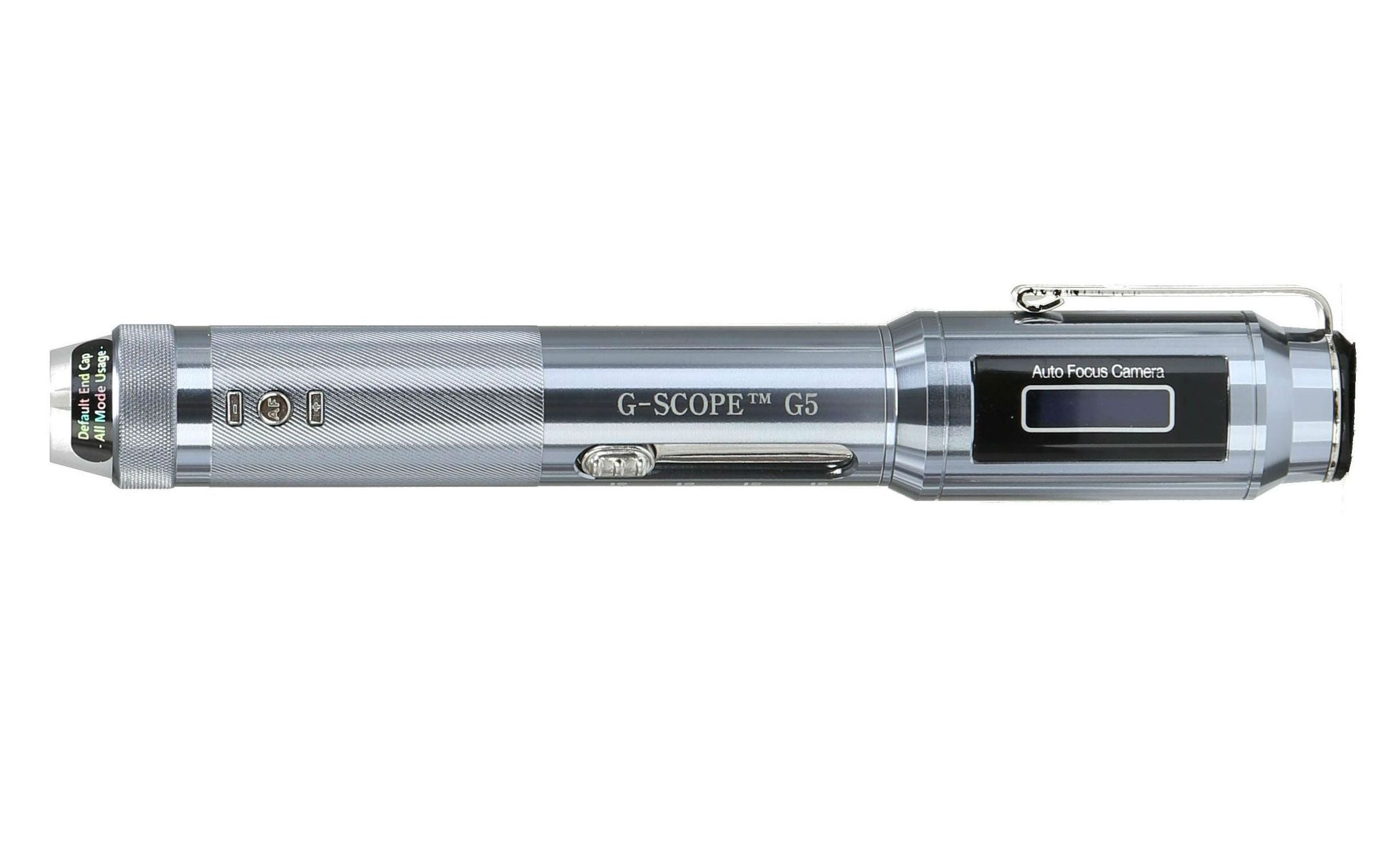

Complete technical information about Smart G-Scope for professionals and integrators.
Optics
- Magnification
- 40x, 100x, 180x and 250x
- Working distance
- Contact ~ Infinity (by changing magnification mode)
- Lens
- Corning® Varioptic® “liquid” lens
- Lens benefits
- Fast, wear-free, robust and precise
- Focus
- Fast autofocus (device button or remote control)
- Focus mode
- Auto Focus and Manual Focus
Image sensor
- Sensor type
- 1/3" CMOS 3.5 megapixels
- Video recording
- AVI, 1920×1080, 1280×720, 720×480, 640×480 @ 30fps
- Photo capture
- JPG, 1920×1080, 1280×720, 720×480, 640×480
- Exposure
- Automatic
- Color control
- Auto white balance
Illumination and OLED
- Illumination
- White LED with on/off control
- OLED display
- Shows magnification on the display (and temperature with an optional head)
- OLED characteristics
- High luminance, visible in clinical environments
Interface and software
- Connection interface
- High-speed USB 2.0 (UVC)
- Compatibility
- Windows 7, Windows 8, Windows 10, Windows 11, Mac OS, Linux, Android
- Remote control
- Infrared remote control
- Image processing
- Emboss, sketch, grayscale, negative, digital zoom, etc.
- Power
- USB-powered, no battery required
Physical characteristics
- Device dimensions
- 175mm × 25mm (L × Ø)
- Case dimensions (G-Scope Box)
- 204mm × 120mm × 52mm
- Housing
- Aluminum alloy, portable design
- Stand
- Optional
- Heads
- Basic head + 3pi head (100x only, elongated and slim for gap observation) included. Other optional heads exist (e.g., for capillaroscopy).
Product parts
Different parts of the Smart G-Scope
Technical documentation
Downloadable resources for professionals
Do you have technical questions?
Our technical support team is available to answer questions about integration, compatibility, and specific applications.
